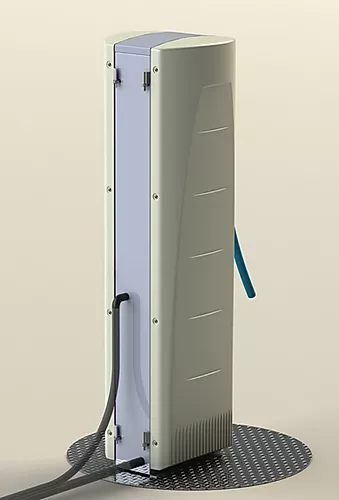

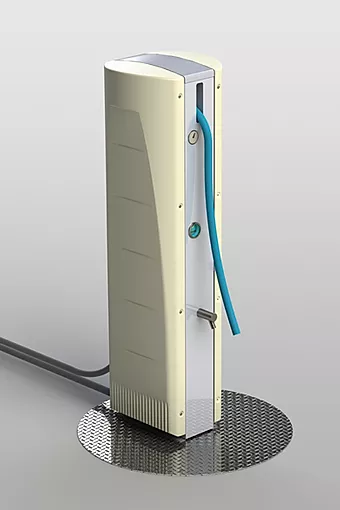

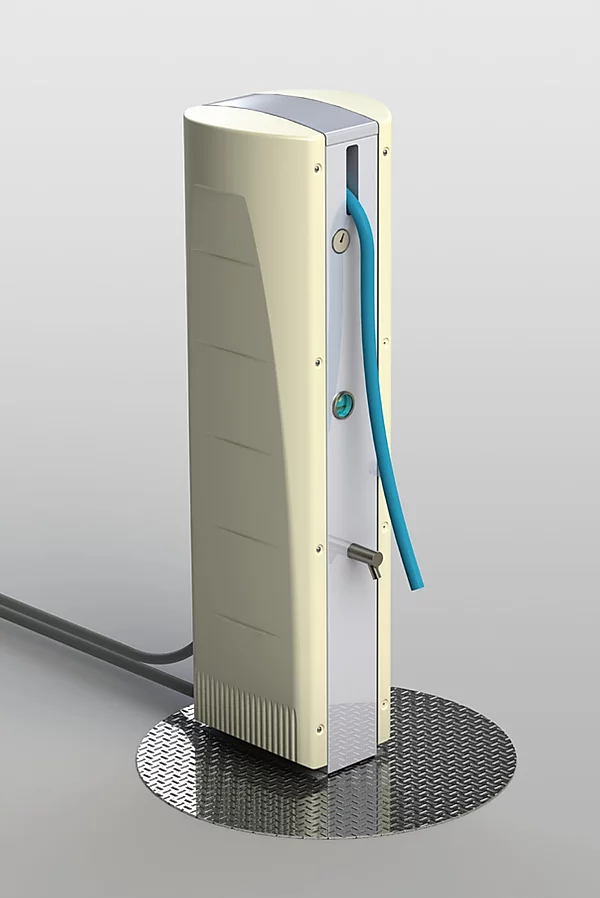

Villagepump 500 Electric
The leading solution for off-grid water treatment
The VILLAGEPUMP 500 yields up to 500 litres of fully purified drinking water per hour, in compliance with the World Health Organisation (WHO) standards for micro-biological content (bacteria, viruses), TSS and NTU. Each Villagepump employs multi-stage filtering based on ultrafiltration that reduce diseases by removing waterborne pathogens that can cause diarrhoea, dysentery, cholera and hepatitis. The units can operate from all forms of surface water, including ponds, lakes and streams The unique, patented automatic cleaning system extends the lifetime of the precious ultrafiltration membrane up to several years, resulting in low maintenance needs and low total cost of ownership.

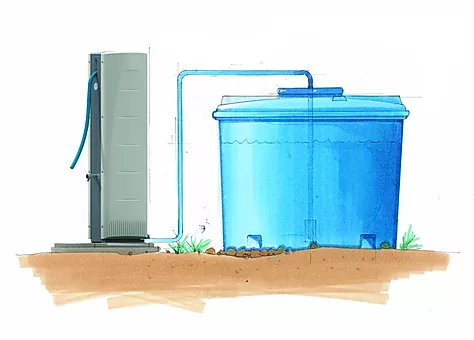

The VILLAGEPUMP 500 is ideal as a compact water treatment system wherever fresh surface water is available or with water storage systems (e.g. rainwater harvesting). Pure water can be directly dispensed to any intermediate storage facility.
The VILLAGEPUMP can be hand-powered, solar-powered or connected to grid power (230V/50Hz). The use of robust materials and high-quality components gives an expected life span of at least 5 years. The VILLAGEPUMP 500 is plug-and-play, easy to maintain and exceptionally user-friendly.
Specifications
Dimensions:
1,73m x 0,50m x 0,62m (h x w x d)
Weight:
80kg
Performance:
500 l/hr
Installation connections(inlet, drain):
¾ inch hose connection

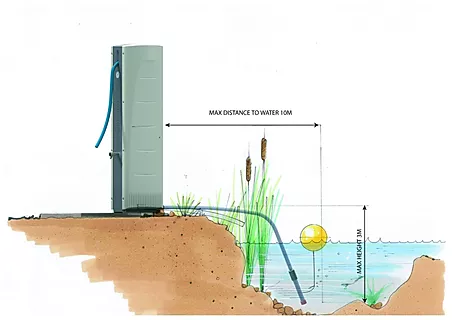

Maximum static head:
3 meter (vertical distance between Villagepump and water level)
Maximum length of inlet hose:
10 meter
Technology:
0,05 mm Mesh Filter
Capillary Ultrafiltration Membranes (with automatic backwash)
Activated Carbon cartridge (optional)
Cleaning:
Automatic high-pressure backwash
Total Coliform / E Coli / F Coli:
<1 CFU/100ml
Total Plate Count at 22°C:
<100 CFU/ml
Turbidity:
< 5 NTU (with a maximum of 100 NTU at raw water) Improving taste and colour (optional) Activated Carbon cartridge 20" carbon block (2,5 x 20")
Ultrafiltration Membrane approval:
NSF 61
Storage and handling:
Villagepump should be stored dry and protected against freezing. Villagepump should be operated preferable at regular/daily base. When stored for a longer time, special treatment is needed.
Operating conditions:
Ambient temperature min +1°C, max +45°C
Feed water temperature min +3° C, max +35°C
Model 1- 230V:
Suitable for connection to power grid (230V – 50 Hz) and can be equipped with:
Feed Pump A: submersible Grundfos UNILIFT CC5 - M1: max 400 l/hr; maximum static head: 2 meter; length of hose: 5 meter; no mesh pre-filter! Suitable for light polluted water / rain water.
Feed Pump B: submersible Grundfos SB 3-25 M: max 500 l/hr; maximum static head: 7 meter; length of hose: 10 meter; 1 mm mesh pre-filter; Suitable for light till average polluted water.
- higher static head or other hose length on request.
Model 2 – 24V:
Suitable for connection to 24V power supply (for example solar power installation) and is equipped with submersible Pentair feed pump with maximum capacity of 320 l/hr and maximum static head of 20 meter; length of hose: 15 meter; 0,5 mm mesh pre filter; suitable for light till average polluted water
- higher static head or other hose length on request
Power Consumption:
Model 1: 500 W rated (Feed Pump A)
Model 1: 750 W rated (Feed Pump B)
Model 2: 200 - 250 W rated, depending on depth of water source
